Photograhic gallery
Pacific Northwest Tiltmeters
Photographs from the biaixal tiltmeter near Olympia at the Shelton airport.

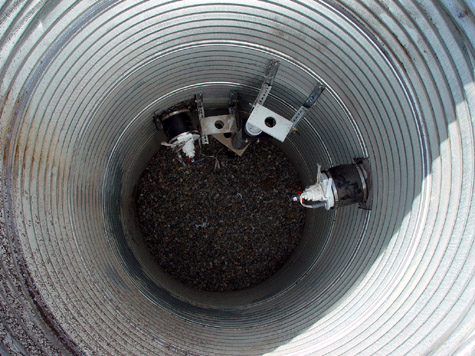

 Corner vault with mounts and end caps for both tiltmeter arms. |

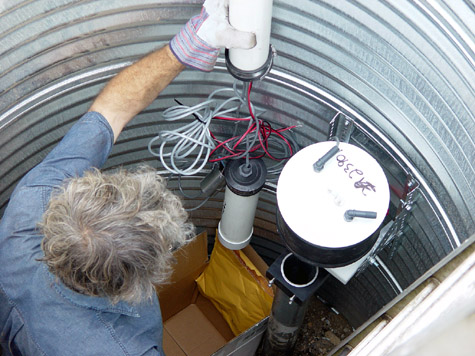

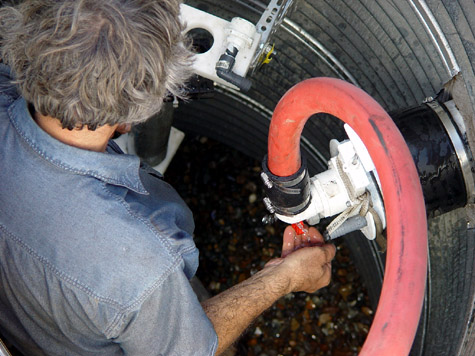

 Mounting electronics & float reservoirs. |

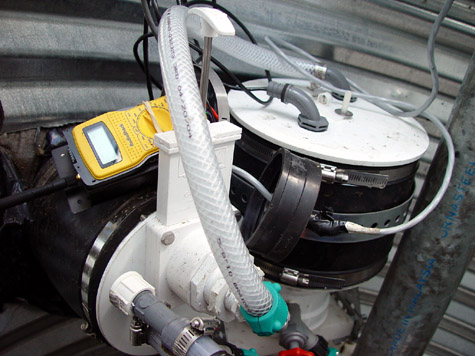

 Working tiltmeter with voltage meter. |
 Close up view of solar panels. |

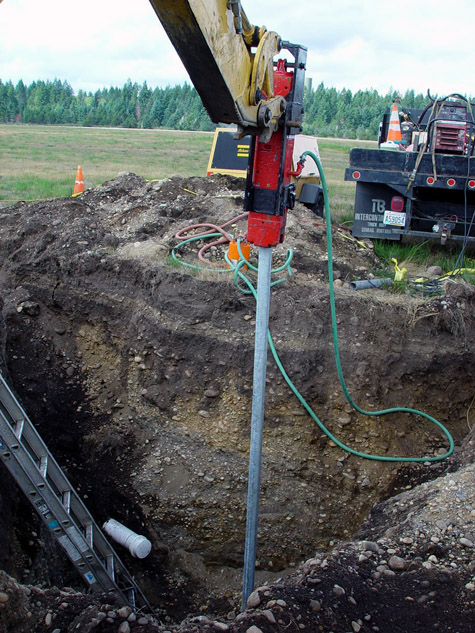

 Driving steel monument piles 30ft deep with pneumatic hammer. |
 Looking across the east-west arm of a 500 meter tiltmeter. |

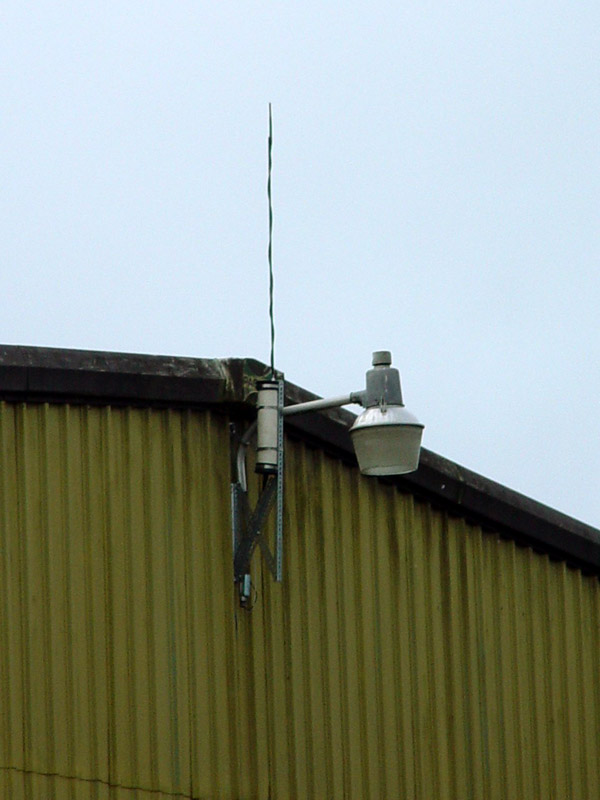

 Radio telemetry links to computer. Data saved every five mins, for each of the six recording instruments |

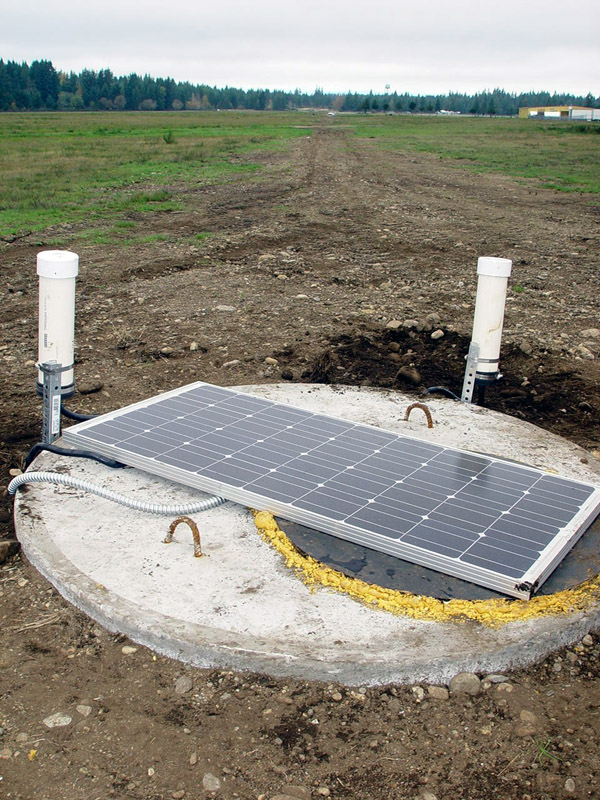

 Complete corner vault with solar and telemetry packages, Note yellow building in upper left corner where the data is archived. |

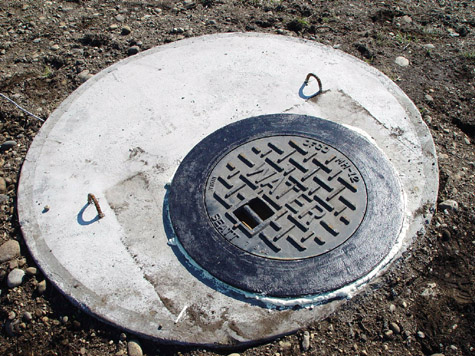

 Each manhole is capped with a rebar reinforced concrete cap. |

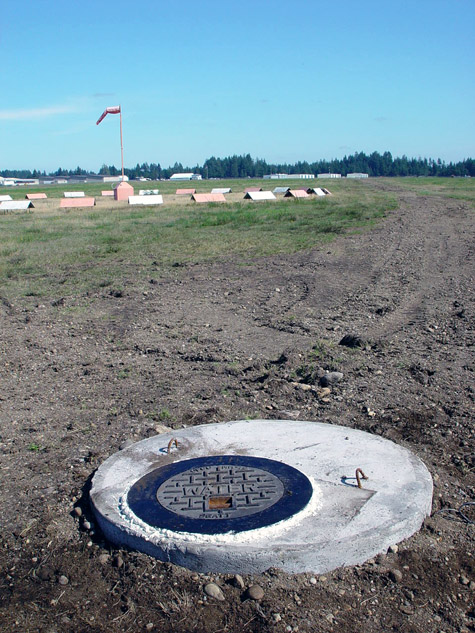

 Surface view of vault entry. |
