Installation of Sequim Tiltmeter

The final Cascadia Tiltmeter was completed in September of 2006 in the vicinity of Sequim, WA. Winnie Salle of the Sequim Valley Airport made construction possible by allowing use of airport property.

Leveling
Sequim Tiltmeter
Tiltmeter Installation

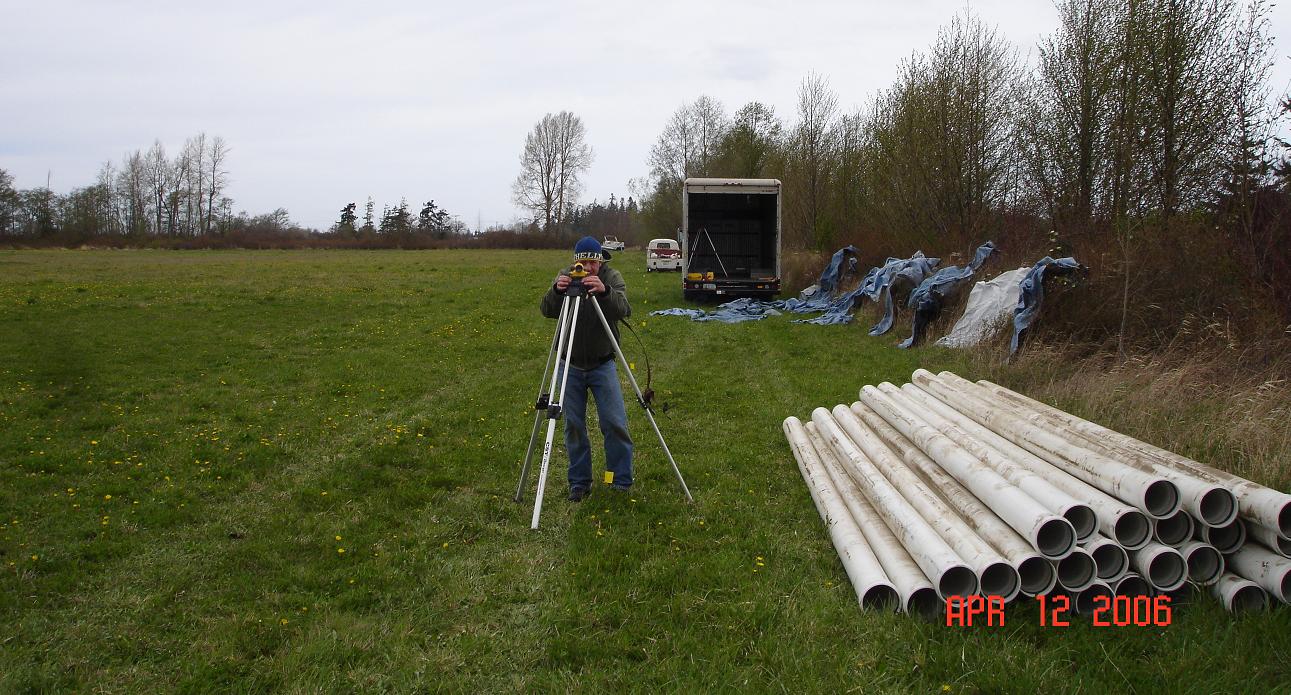

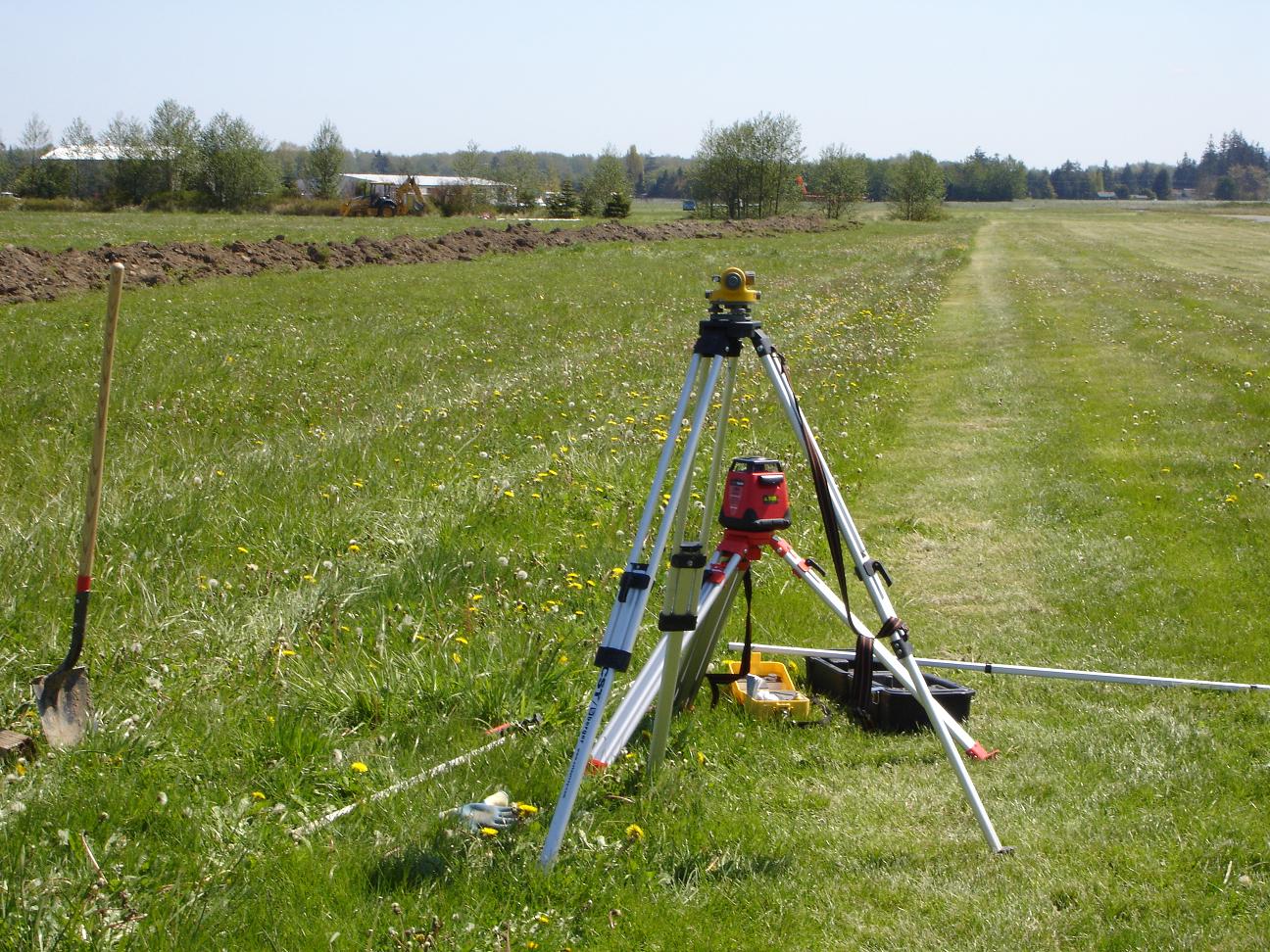

Optical and Laser Leveling
Tiltmeter Installation

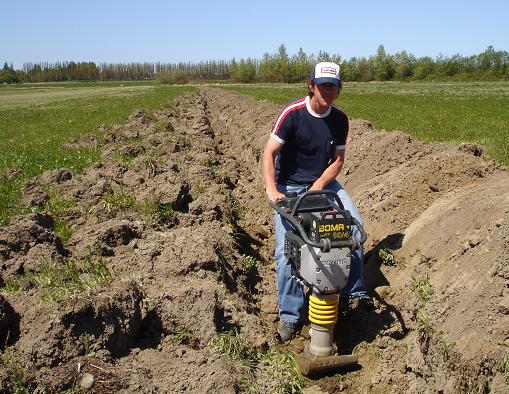

Packing Backfill

This tiltmeter consists of two arms approximaely at right angles, in an L-shape plan view with the corner vault in SE end. The south and east sensors share a solid pier monument and the system is run by AC power. Manholes were constructed in concrete with soil completely covering the lids to minimize temperature vairation. Electronics are housed in exterior boxes. The float system was changed for this newset system and relies on surface tension rather than bouyancy. While this feature aided in damping the oscillitory resonances it also allowed failure when surface tension was compromised. New 4-bulb float systems have been employed with LVDT housed within the reservoir itself to correct this error.

Helicapiles and covers

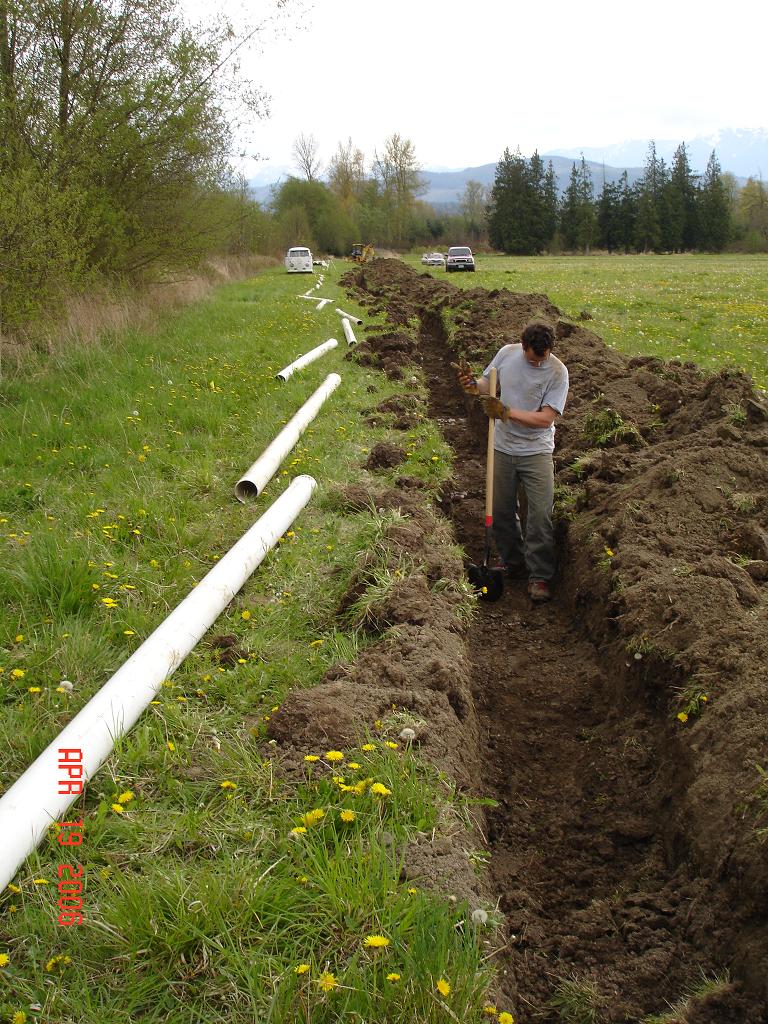

Hand Shoveling for Precision
SE vault

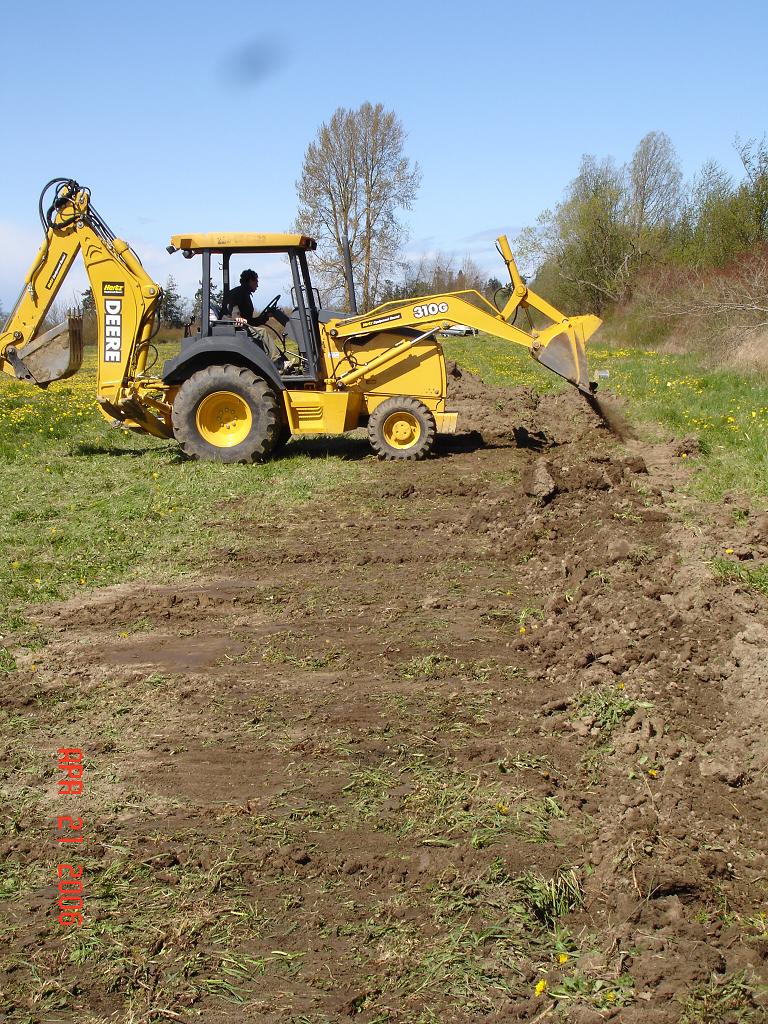

Tractor Clean-up

Data stored in the computer are accessed via cell-phone through the internet. Power to the tiltmeter comes through an AC hookup (120V at 0.2 Amp is equivalent to a 25W light bulb).

Data

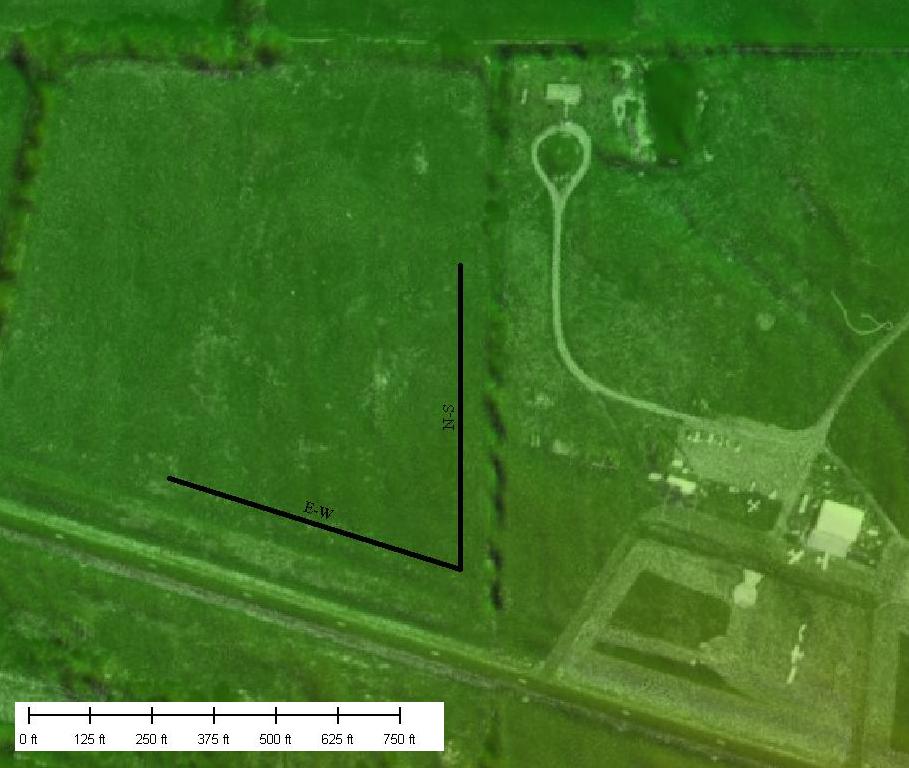

Map View of Pipe Location
